JAW CRUSHERS
Home Products

Jaw Crushers

Looking for powerful, portable crushing solutions? Our mobile jaw crusher lineup is engineered for high-efficiency on-site material reduction in construction, mining, and recycling environments. Designed to crush hard rock, concrete, and demolition debris, these mobile units offer unmatched flexibility, fast setup, and consistent output quality. Whether you’re working in urban job sites or remote quarries, Vertex mobile jaw crushers deliver robust performance with minimal downtime and reduced transport costs.

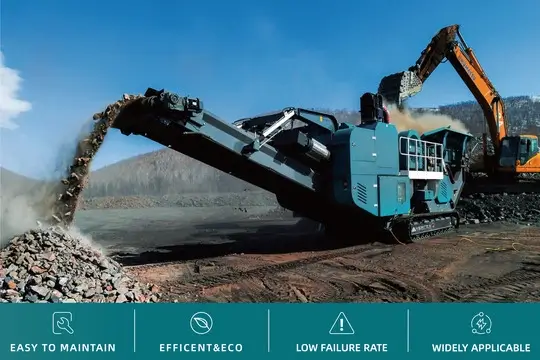

VCJ1070x760E Mobile Jaw Crusher

Robust mobile jaw crusher with a 7m³ feeder, JW42 jaw, 52-ton crawler chassis, and Volvo-Stamford power unit. Ideal for heavy-duty sites needing efficient, high-capacity primary crushing with reliable screening and iron separation.

  • Feed opening size(mm)： 1070×760mm
  • Feeding capacity (t/h)： 500
  • Machine weight (t)： 52
  • Working Dimensions： Height 4.5m | Width 5.8m | Length 17.3m
Learn More

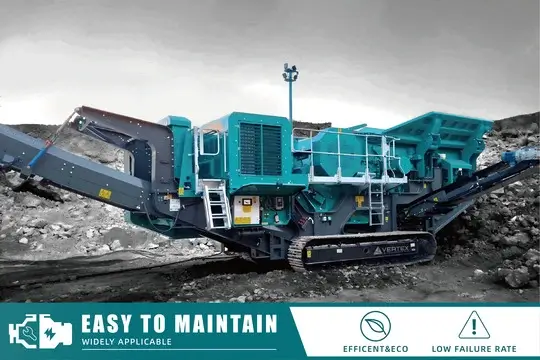

VCJ1060x700E Mobile Jaw Crusher

Compact and powerful jaw crusher with a 7m³ hydraulic feeder, Volvo-powered engine, 52-ton crawler, and smart electric control. Built for flexible, mobile primary crushing in quarrying, mining, and recycling applications.

  • Feed opening size(mm)： 1060×700
  • Feeding capacity (t/h)： 500
  • Machine weight (t)： 52
  • Working Dimensions： Height 4.7m | Width 7.8m | Length 15.6m
Learn More

VCC300RSE Mobile Crusher

Equipped with a high-performance cone crusher, 450kW engine, 2.5m³ feeder hopper, return screening system, and 1200mm iron separator. Delivers powerful, automated crushing with 17.7m compact design for versatile on-site aggregate production.

  • Maximum feed size (mm)： 215
  • Crusher power(kw)： 250
  • Machine weight (t)： 56
  • Working Dimensions： Height 5.2m | Width 4.2m | Length 17.7m
Learn More

VCI1313 Mobile Crusher

The VCI1313 features a large hopper for easy loader feeding, a high - efficiency screening host with hydraulic - driven frame opening for maintenance. Equipped with multiple conveyors (finished, tail, return) and a durable walking track. Ideal for large - scale quarry/mining, ensuring smooth material processing and mobility.

  • Feeding capacity (t/h)： 650
  • Maximum feed (mm)： 600
  • Machine weight (t)： 63.5
  • Working Dimensions： Height 3.8m | Width 3.8m | Length 18m
Learn More

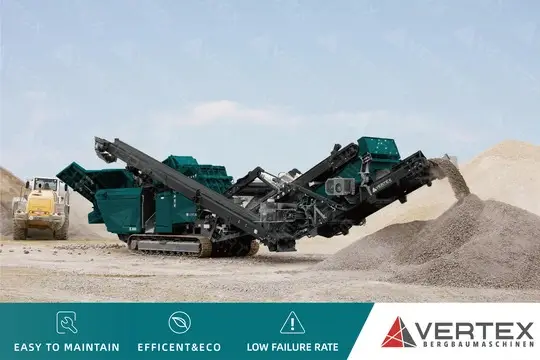

VCI1213RSFK Mobile Crusher

VCI1213RSFK boasts a 7m³ hopper/feeder, multi - layer pre - screening unit, and an independently developed impact crusher. With modular conveyors (side, main, return) and smart electric control cabinet (frequency conversion, remote control). Suits complex on - site operations, delivering precise crushing and flexible material handling.

  • Feeding capacity (t/h)： 500
  • Maximum feed (mm)： 700
  • Machine weight (t)： 69
  • Working Dimensions： Height 5.6m | Width 7.3m | Length 21.3m
Learn More

VCSH6019 Mobile Screening Station

VCSH6019 Mobile Screening Station offers a 9.8m³ hopper for easy loading. It integrates multi - type conveyors (feeding, fine/medium/oversized, etc.) with clear power/bandwidth specs. The 3 - layer UP triaxial horizontal screen ensures efficient separation. Equipped with safety escalator, durable walking track, and extra - heavy rack. Ideal for precise material screening in quarry and mining operations, boosting processing flexibility.

  • Feeding capacity (t/h)： 600
  • Maximum stacking height(mm)： ≤3400
  • Machine weight (t)： 38
  • Working Dimensions： Height 4.4m | Width 14.71m | Length 20.95m
Learn More

VCR1800 Mobile Screening Station

VCR1800 features a robust hopper with high - strength, wear - resistant components for stable feeding. Its screening host uses a circular vibrating screen (2 - layer) to handle various materials, with customizable screen layers. Equipped with durable conveyors and a reliable walking track, plus an extra - heavy rack for stability. Ideal for efficient material separation in tough working conditions.

  • Maximum Processing Capacity (t/h)： 600
  • Maximum feeding size(mm)： 600
  • Screen Size(m)： 4.88×1.5
  • Working Dimensions： Height 3.8m | Width 12.6m | Length 14.3m
Learn More

VTS - F6115 Mobile Screening Station

VTS - F6115 comes with a well - designed hopper ensuring smooth material feeding. The screening host adopts advanced vibrating screen tech, enabling effective sorting of different materials. It has sturdy conveyors, a dependable walking system, and a reinforced rack structure. Suited for precise screening tasks, boosting productivity in mining and quarry operations.

  • Maximum Processing Capacity (t/h)： 800
  • Maximum feeding size(mm)： 600
  • Screen Size(m)： 6.1×1.83
  • Working Dimensions： Height 5.6m | Width 16.2m | Length 18.3m
Learn More
